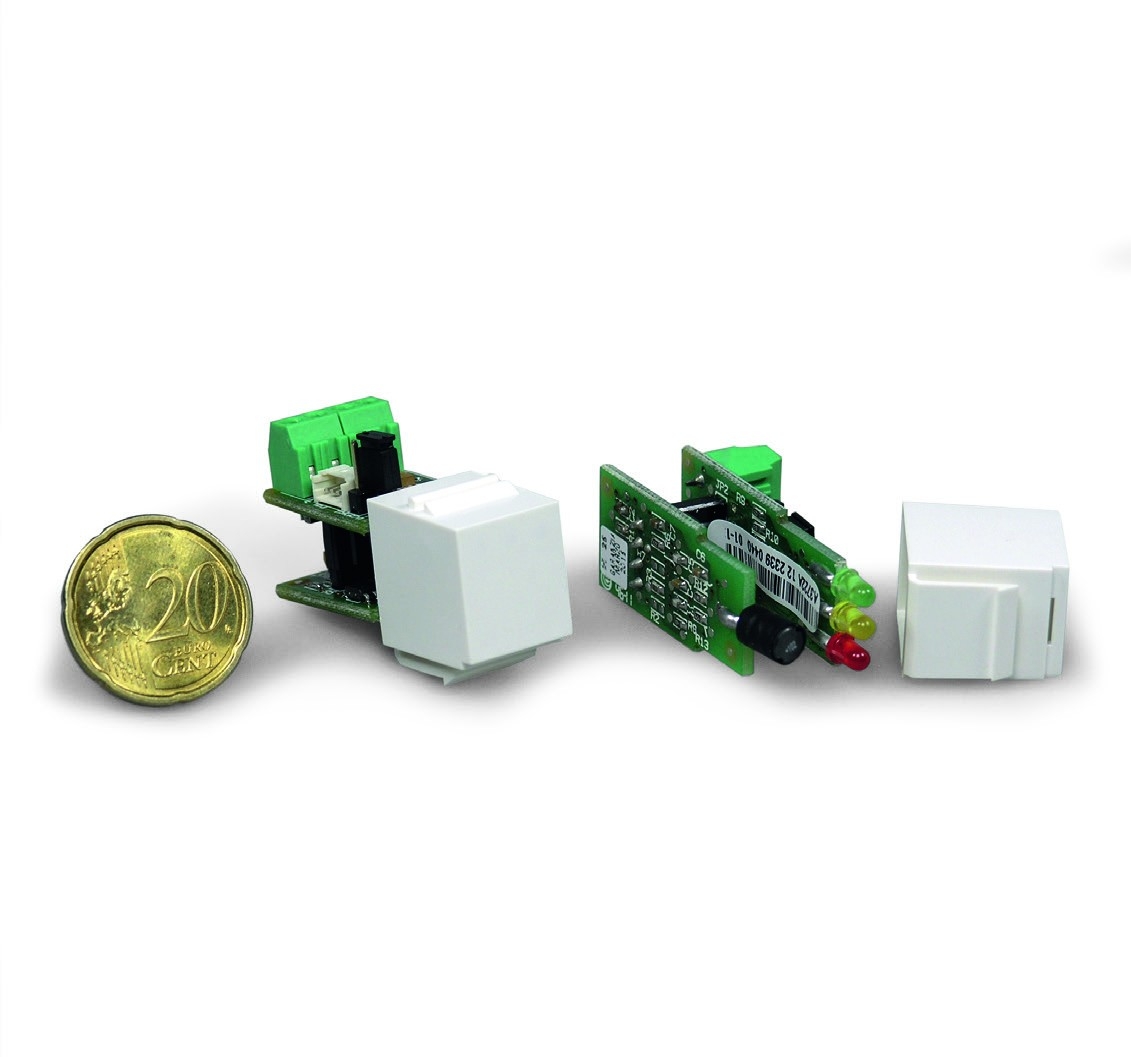

4022 Flush mounting TAG-Bus reader
4023 Flush mounting TAG reader

Ethernet Compatible

4022
This device is designed to arm, disarm and split the alarm system; it is can also be used to control accesses /door openings.

Operations and Installation
Compatible with any residential series Ethernet plug, this device can work simultaneously as a trigger and as an access / door opening control, but requires various TAG keys, each one dedicated to a different function.

4023
This device is designed to arm, disarm and split the alarm system.

Operations and Installation
Compatible with any residential series Ethernet plug, this device allows Sil-Bus alarm systems to be totally/partially armed or disarmed through an electromagnetic TAG. The reader must be wired to the Touch-screen; it is possible to connect up to 4 in parallel.

4022 Flush mounting TAG-Bus reader 4023 Flush mounting TAG reader

Size (h×l×d)
22×15x42 mm

Weight
0.10 Kg

Environmental class
3 - Outdoor sheltered

Certifcations
EN 50131

4022
Power Supply
12V DC (Bus)

Features
As an arming device:
the device allows a Sil-Bus alarm system to be totally or partially armed and disarmed using an electromagnetic TAG encoded with more than one million different combinations.
As an access control - door opening device:
The device allows to control a relay board to open doors, store time, date, and name of used TAG in the events log.

Local signals
Visual signals for total arming, partial arming, disarming, alarm set off during arming phase, and door/window open during arming.

4023
Power Supply
5V CC (Touch-Screen)

Features
It allows a Sil-Bus alarm system to be totally or partially armed and disarmed using an electromagnetic TAG encoded with more than one million different combinations.

Local signals
Visual signals for total arming, partial arming, disarming, alarm set off during arming phase, and door/window open during arming.
