5424 Power Supply
9V GP1604A alkaline battery or equivalent battery. Battery life: approximately two years with standard use. (battery life decreases considerably when repeated alarm events take place).
EU compliant Dual Band frequency operations. Range is suitable for device’s intended use.
Monitoring and Testing
An alarm sounds, which lasts as long as there is smoke inside the closed room (various minutes). Blow sufficient clean air in the detector to end an alarm triggered for these reasons.

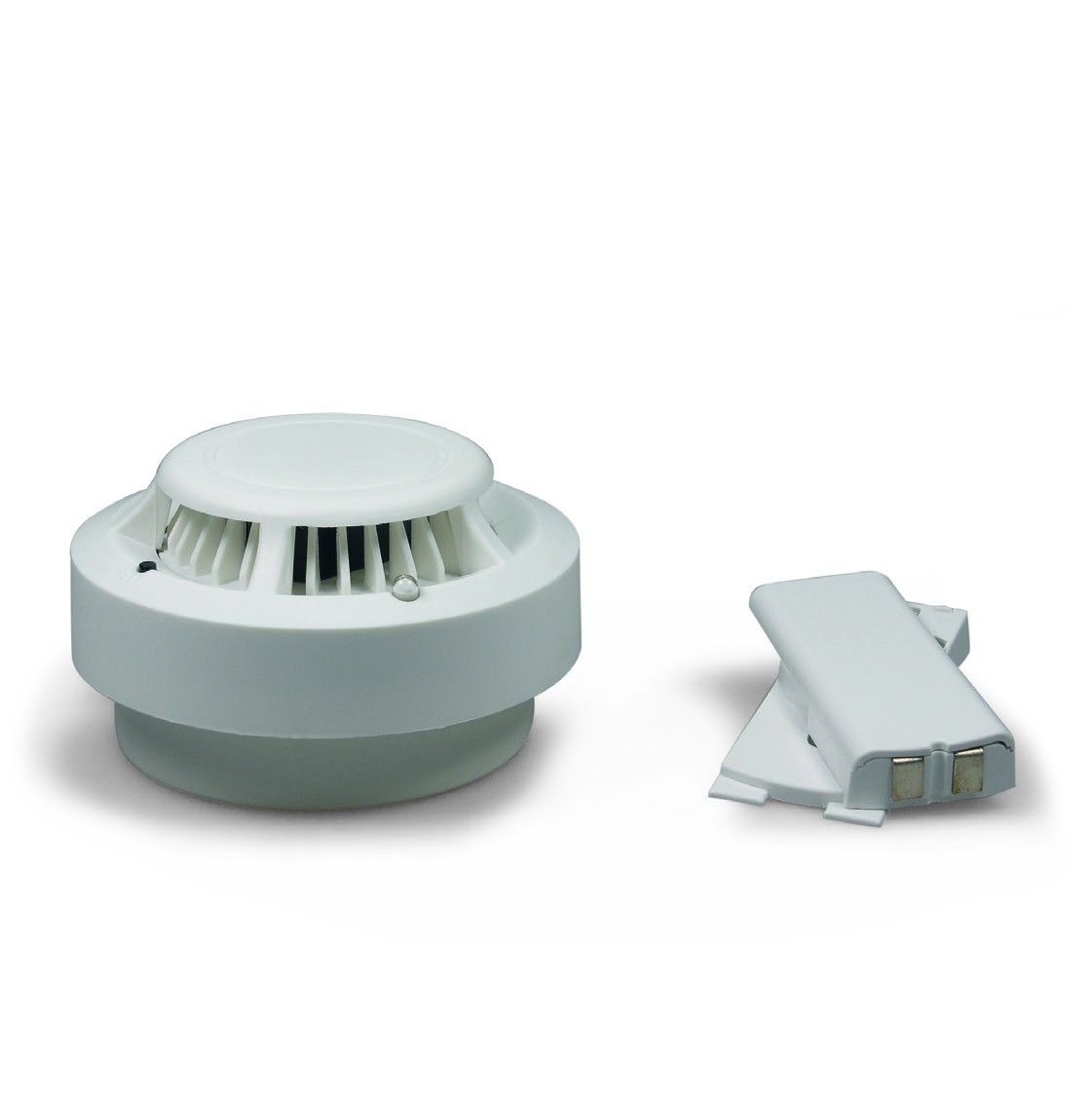

This device features an infrared photo-optical detector housed in a dark casing: smoke reduces the infrared signal until it causes an alarm.
Warning: kitchen smoke, high concentrations of water steam and other similar dust can cause untimely alarms. Dust Detector reports its operating conditions (supervision) and battery levels every 40 minutes. The control panel reports these signals following any arming and/or disarming operations.
This device contains two plates in anti-oxidant material, connected to two clamps. Install the wall device with the sensitive plates downwards, at the desired height to signal the level of liquids. Connect it to Sensor HT, obviously positioned higher up, using the appropriate clamps.
